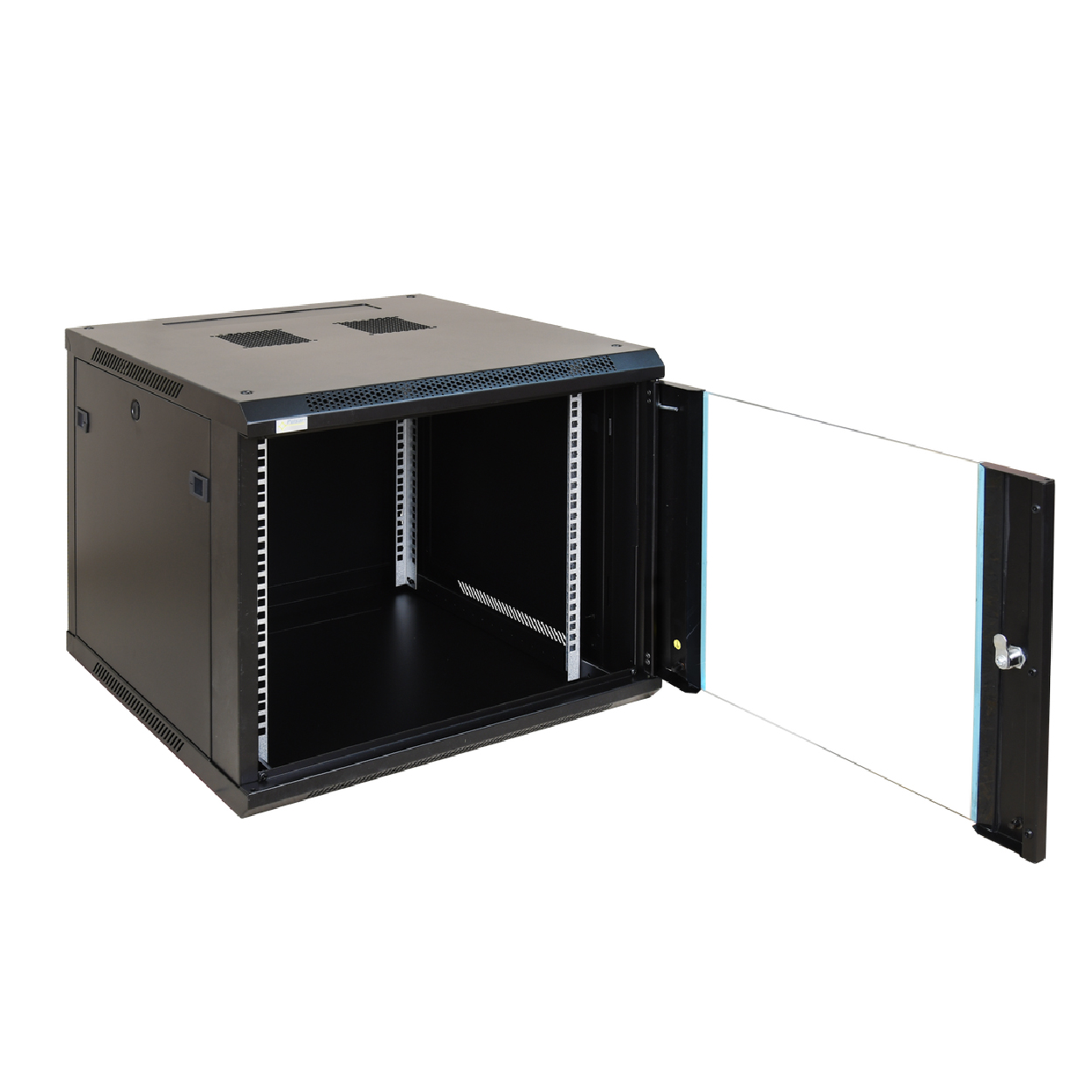

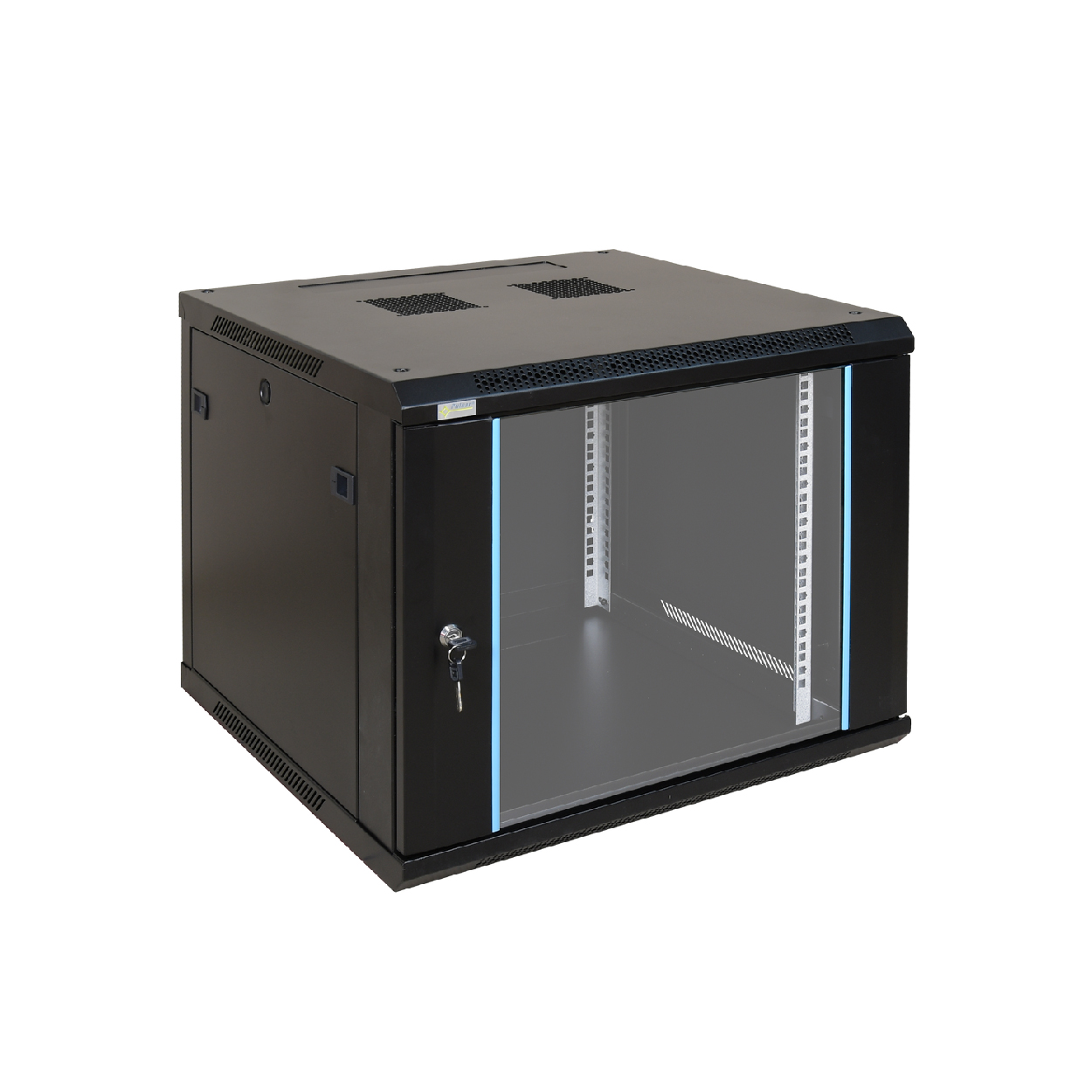

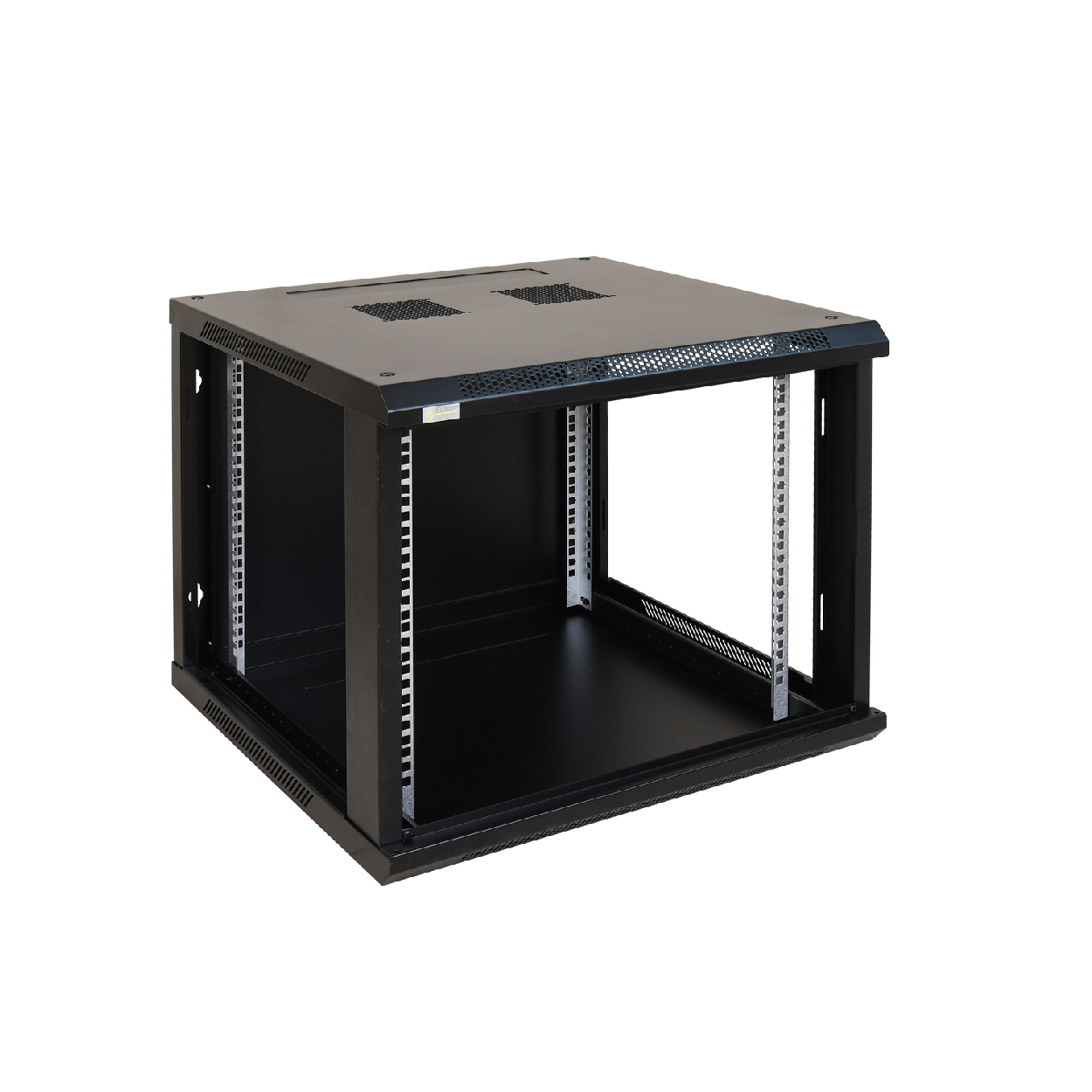

9U RACK cabinet 600 × 600

9U RACK cabinet, wall mounted, ready-to-assemble 600 × 600

• The RACK cabinet of 19 ″ allows to integrate CCTV, air conditioning, I & HS, RTV, LAN and others into small businesses or homes. It is designed for devices made of 19 ″ standard cabinets. Thanks to RACK cabinets, the devices are installed aesthetically and are protected from mechanical damage. Mounting dimensions: 19 ″ x 9U

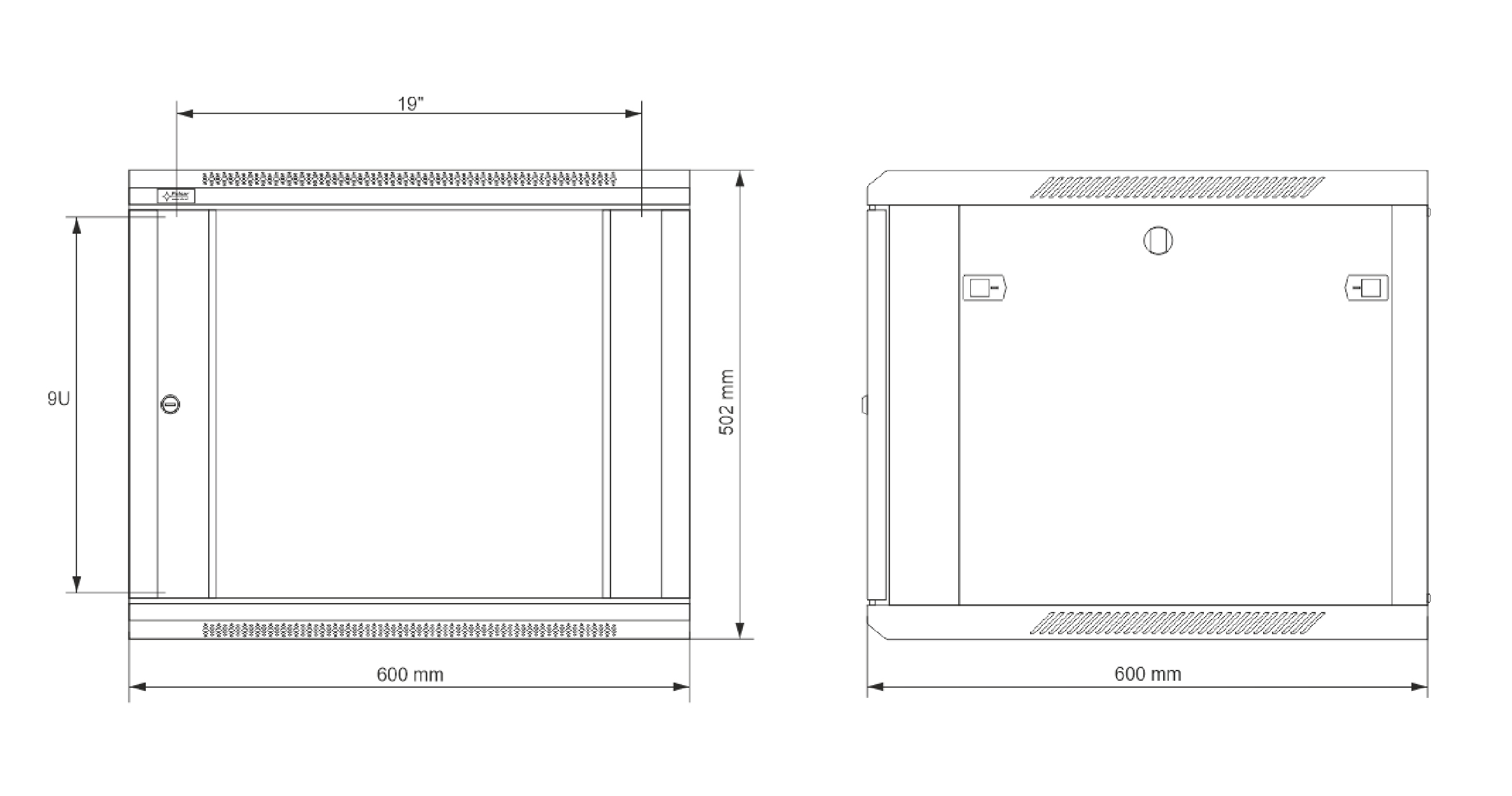

• Dimensions: 600 x 502 x 600 [+ / -2 mm]
• Type: Wall cabinets, ready to mount
• Front door lock: lock (RAZ25, same code)
• side: click (mounting with possible lock: RAZB16)
• Material: cold rolled steel SPC, 1.2 mm, 1.5 mm, RAL9004 (black), metallised
• Degree of protection: EN60529 IP 20

Notes: - Interchangeable door: right or left

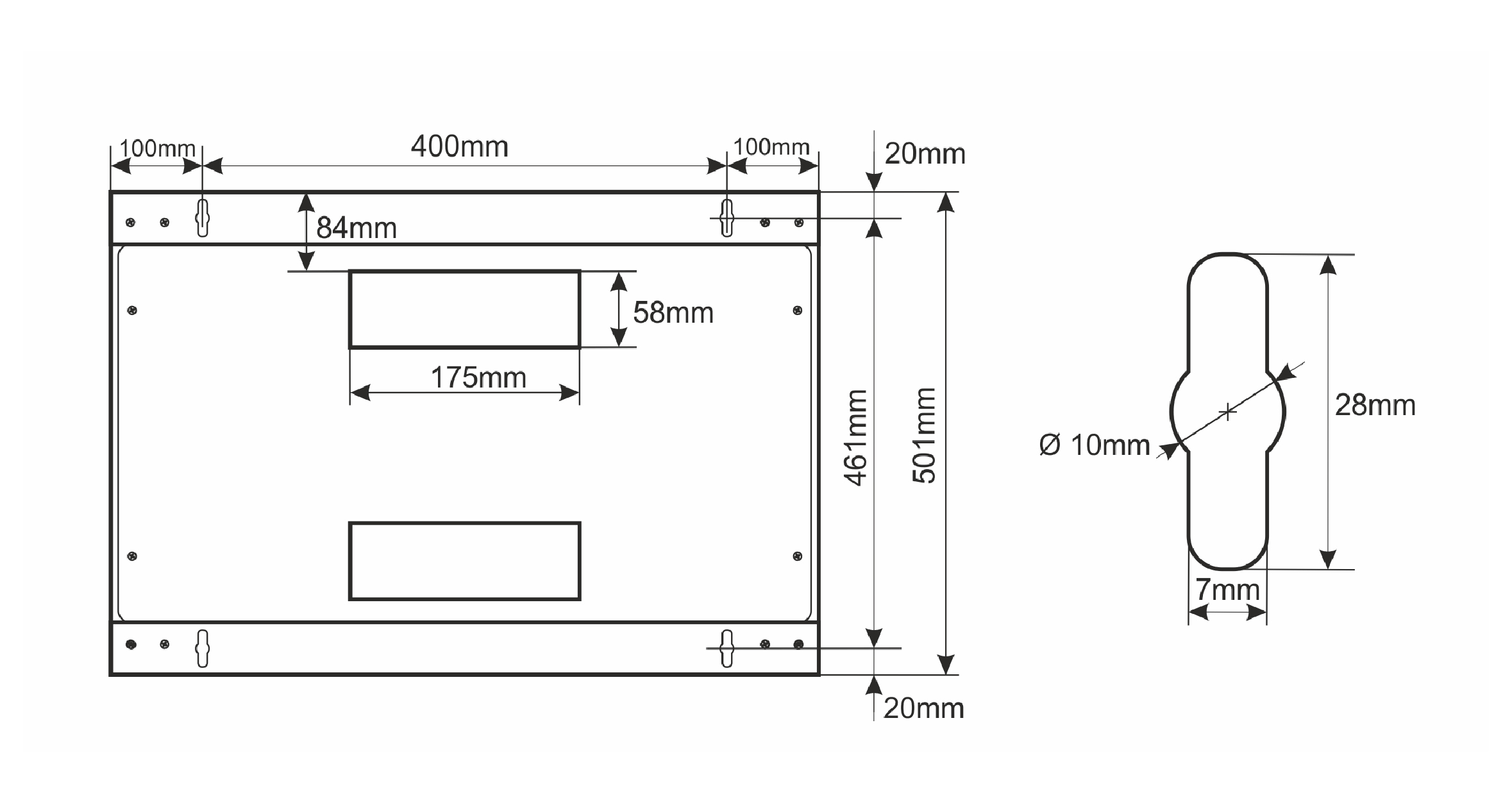

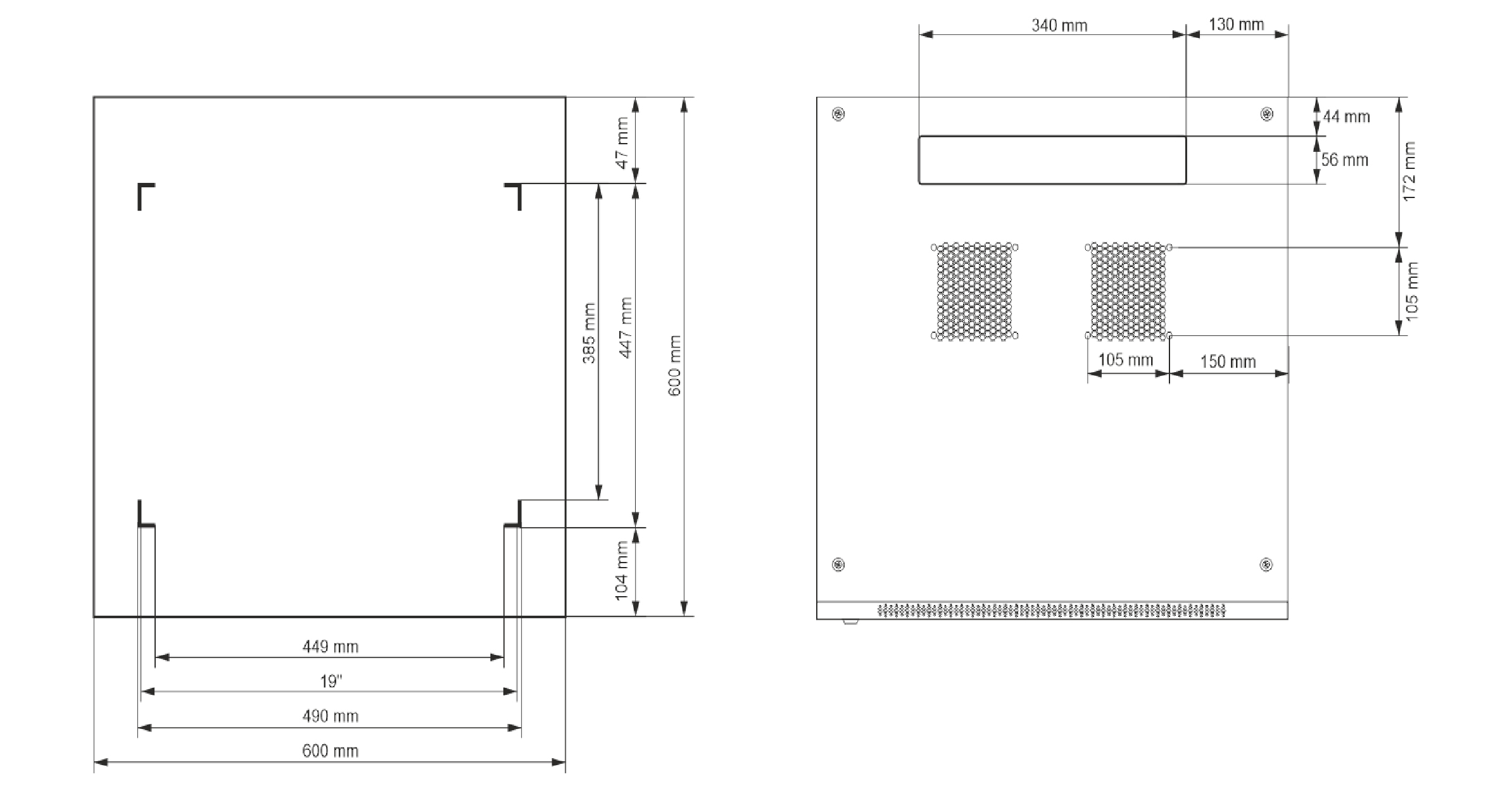

• Ventilation holes on the top panel (2 x 105 x 105 mm - assembly dimensions)
• Conducts for cables on top and bottom panels
• Interchangeable door: right or left
• Dismountable rear panel

DANGES

• →  Technical information sheet
